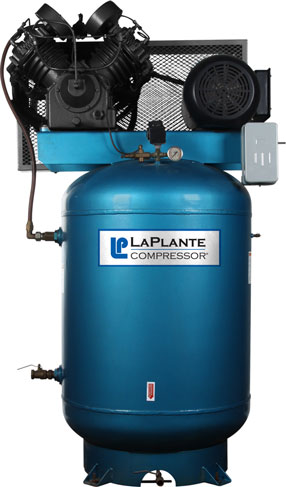

LaPlante Industrial Air Compressor

LaPlante Industrial Compressors are engineered and built for rugged use. We use heavy duty, cast iron pumps, premium single phase and three phase motor options, standard 'dual' control, and standard magnetic starters. Every component is specified to provide a minimum of 8000+ hours of continuous, industrial duty performance. Our Industrial Compressors are designed for professional use, working in extreme environments, providing all the air needed to get the job done.


  • TEFC (Totally Enclosed, Fan Cooled) Motors
  • Kellogg Pumps
  • IEC Rated Magnetic Starters

Manual Spec Sheet
V8051-355 V8051-355
V8053-355 V8053-355
V8071-205 V8071-205
V12071-452 V12071-452
V12073-452 V12073-452
V120101-452 V120101-452
V120103-452 V120103-452

Model # Starter HP CFM @ 175PSI Tank Volume (Gal) Tank Type Pump RPM (Lower=Better) Voltage/ Phase Operating PSI Weight (Lbs)
V8051-335 Magnetic 5 15.7 80 Vertical 695 208-230/ Single Phase 145-175 645
V8053-335 Magnetic 5 15.8 80 Vertical 701 208-230/460/ Three Phase 145-175 645
V8071-205 Magnetic 7.5 22.4 80 Vertical 1110 208-230/ Single Phase 145-175 750
V12071-452 Magnetic 7.5 26 120 Vertical 556 208-230/ Single Phase 145-175 980
V12073-452 Magnetic 7.5 26 120 Vertical 556 208-230/460/ Three Phase 145-175 980
V120101-452 Magnetic 10 31 120 Vertical 652 208-230/ Single Phase 145-175 980
V120103-452 Magnetic 10 36 120 Vertical 735 208-230/460/ Three Phase 145-175 980
